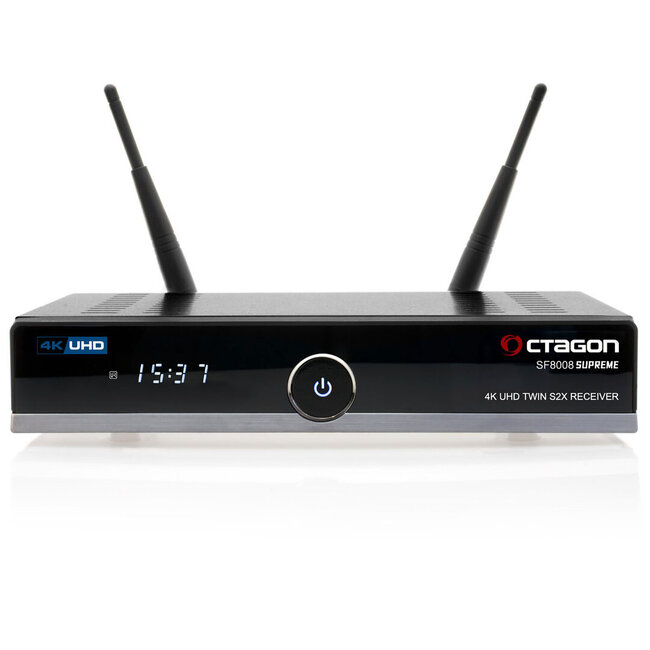

The receiver with Dual OS meets all the requirements of a multimedia device and now offers even more options. Read more.
The impressive success story of the SF8008 models forms the basis for the latest innovations in the Octagon Supreme series.
We are proud to present the Octagon SF8008 SUPREME models that bring a world first – the M.2 interface for the internal integration of M.2 hard drives.
The Receiver with Dual OS meets all the requirements of a multimedia device and now opens up even more possibilities.
The already high quality has been further improved by using a new tuner and demodulator. The Supreme models set new standards with an advanced tuner and demodulator for optimized reception, the integration of an M.2 interface for internal hard drives, fixed dual-band WiFi (2.4/5 GHz) with up to 1200 Mbps and Bluetooth 5.1 – a groundbreaking combination of performance and connectivity.
The Octagon SF8008 SUPREME offers two tuner options with DVB-S2X, DVB-C and DVB-T2. With a USB 3.0 port, Gigabit LAN interface and H.265 video decoding, it enables a comprehensive 4K experience. Discover the new 4K feeling with the Octagon SF8008 SUPREME.
The Octagon SF8008 SUPREME 4K UHD receiver features two integrated DVB-S2X Sat & DVB-C/T2 tuners. With an impressive performance (15,000 DMIPS) and lightning-fast switchover times, it offers an outstanding user experience.
Modern Entertainment & numerous properties
The Octagon SF8008 4K UHD supports a variety of images, allows you to download additional plugins and offers HDR, HLG and H.265 decoding. With Gigabit LAN (1000Mbps) and a permanently installed WIFI module, it ensures a quick connection to high-resolution content. Two Wi-Fi antennas are also available. With an M.2 slot, USB 3.0, USB 2.0, a microSD slot and a card reader, the receiver offers sufficient possibilities for playing back content from external storage media. Other connections include HDMI 2.0, AV (Audio & Video) and an S/PDIF output for digital sound signals. In stand-by, the power consumption is less than 0.5 watts.
Versatile:
The receiver offers a PVR recording function, time-delayed television via internal M.2 HDD hard drive or external USB stick, access to YouTube, WiFi, media player & media library, Internet functions, plug-in download and is suitable for use in camping and more.
Extensive equipment:
The receiver features dual OS with E2 Linux and Define OS, DVB-S2X Sat & DVB-C/T2 tuner, recording function and supports customizable skin user interface as well as many free plugins (extensions and apps) under the E2 Linux OS.
User-friendly:
The receiver offers an intuitive multilingual menu, enhanced EPG (Electronic Program Guide), numerous images and skins as download, satellite-to-IP TV optimization and support for E2 multi-room client.
Future-proof:
The receiver is equipped with a 4K H.265 HEVC UHD processor, 8GB eMMC Flash/1GB DDR DRAM, M.2 SSD slot, HDMI & USB with PVR function, LAN, Wi-Fi, AV over RCA and optimized for satellite-to-IP TV.
Metal housing & solid processing
MAIN FEATURES:
– Dual OS: E2 Linux & Define OS Linux
– 4K H.265 HEVC UHD processor (3840 x 2160)
– Hisilicon Hi3798MV200 Huawei
– Quad Core 64Bit (4x 1.6GHz) 15000 DMIPS
– Flash 8GB eMMC
– RAM 1GB DDR4
– M.2 slot (M.2 SSD: M KEY – PCIE NVME)
– Gigabit LAN Ethernet (1000Mbps) Network Interface
– Fixed 2.4/5G dual-band WiFi (WLAN) up to 1200Mbps, 2x wlan antennas
– 4-digit 7-segment display
– CA card reader
– Hardware BlindScan (blind search)
– DVB-S2X & DVB-C/T2 combo (2xtuners) + Multistream support
– Multiroom Client & Sat to IP Client Support
– HDMI 2.0a & USB 3.0
– MicroSD slot
– HDMI CEC Support
– Learning remote control
SPECIAL OWN FEATURES:
– DUAL OS: E2 Linux OS operating system & OCTAGON Define Linux OS
– DVB-S2X 4K UHD & Multistream (T2-MI Direct input)
– Symbol rates of 100 – 80,000 SR
– PIP HD & UHD (picture in picture)
– HDR 10bit & HLG
– Multi Transcoding & Multiroom
– Sat>IP Client & V-tuner USB Dongle
– Blind scan (blind search)
– Media libraries of the public broadcasters
– HW multiboot
– ffmpeq HW Playback Support
– 2160P Media Backing Trackback H.264 and H.265
– OTA Updates
– DiSEqC 1.0/1.1/1.2, USALS, Unicable, Fast Scan
– PVR recording (*optional)
– 12V connection (also suitable as a camper receiver for camper or caravan. 12V car adapter not included)
– 0.5W stand-by
FRONTSEITE:
– Power button on/off
– 4-digit 7-segment display
– LED display (red / blue)
– IR sensor (infrared receiver)
RETURN:
– H.265 4K UHD DVB-S2X & DVB-C/T2 Tuner LNB input
– Dolby S-PDIF
– AV – Audio video jack – RCA
– RS-232 socket (feature & service)
– WiFi 2x wlaning antennas
– HDMI 2.0a output
– USB 2.0 port
– Network Gigabit LAN (1000Mbps)
– MicroSD slot
– Recovery (reset) button
– DC-12V power supply
– Power switch on/off
RIGHTS SITE:
– USB 3.0 port
– Card Reader (CA CARD)
INNEN:
– M.2 slot for internal SSD hard disk (M.2 SSD: M KEY – PCIE NVME)
DELIVERY FANG:
– Receiver OCTAGON SF8008 4K SUPREME COMBO
– Learning remote control
– 2 x AAA batteries
– Operating instructions (German & English)
– HDMI cable
– Power supply (power supply)
TUNER & DEMODULATOR:
– DVB-S2X: Availink AVL62X1 & RDA5815m
– DVB-C/T2: Altobeam ATBM7821
Manual-User-Manual-OCTAGON SF8008 SUPREME 4K COMBO
