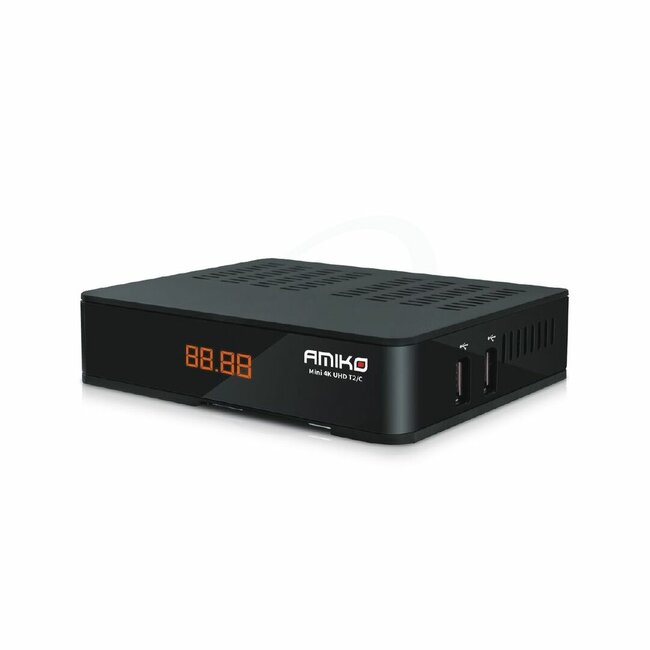

The Amiko Mini 4K UHD T2/C is a hybrid 4K UHD receiver compatible with both CAI cable and Digitenne T2 signals. This receiver is equipped with a built-in DVB-T2/C tuner and also features a built-in multi-card reader. With the capability to receive 4K UHD Read more.
The Amiko Mini 4K UHD T2/C is a hybrid 4K UHD receiver that is suitable for both CAI cable and Digitenne T2 signals. This receiver features a built-in DVB-T2/C tuner and also includes a built-in multi-card reader. With support for 4K UHD, it also supports H.265 HEVC. What makes this 4K UHD receiver unique is that it has both HDMI 2.0 and RCA (tulip) connections. Due to its compact size, 12V power supply, and infrared eye, the Amiko Mini 4K T2/C is suitable for home use or for use in your camper, caravan, or boat. The Amiko Mini 4K T2/C is a very complete 4K UHD receiver at a very competitive price.
Key Features:
- 4K UHD digital T2 terrestrial/cable receiver
- Built-in Conax card reader
- Supports 2 fast USB 2.0 connections
- External IR port
- Ethernet connection
- TimeShifting support
- Software upgrade via USB
- Digital audio bitstream via HD OUT
- Supports playback of MKV, AVI, MPG, MP4, TS, VOB, JPEG, and MP3
- Low standby power consumption
Tuner and Demodulation:
- Tuner Type: DVB-T2/DVB-C
- Frequency Range: 48 MHz - 862 MHz
- RF Input Level: "-80dBm to -20dBm"
- Antenna Power Output: DC 5V at max. 75mA, overload protection
- Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
- Input Symbol Rate: 1.0 ~ 7.0 Ms/s
- Constellations: QPSK, 16QAM, 64QAM, 256QAM (both rotated and non-rotated)
- Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
MPEG TS A/V Decoding:
- Transport Stream: MPEG-2, MPEG-4, H.264, H.265
- Input Rate: max. 120 Mbit/s
- Aspect Ratio: 4:3, 16:9, letterbox
- Video Decoding: UHD 4K x 2K, HEVC/H.265, MPEG-4/H.264 SP @ L3 to ASP @ L5, MP @ ML, MP @ HL, [email protected], [email protected]
- Video Resolutions: 720*480p/i, 720*576p/i, 1280*720p, 1920*1080p/i, 3840*2160p
- Audio Decoding: AAC-LC, HE-AAC, LPCM, MP3, WMA, WAV
- Audio Mode: Left/Right/Stereo/Mono
- Sampling Frequencies: 32, 44.1, and 48 kHz
System Resources:
- Main Processor: 1000 MHz
- Flash Memory: Serial Flash 8 MB x 1
- DDR RAM: DDRIII 1866 128 MB x 2

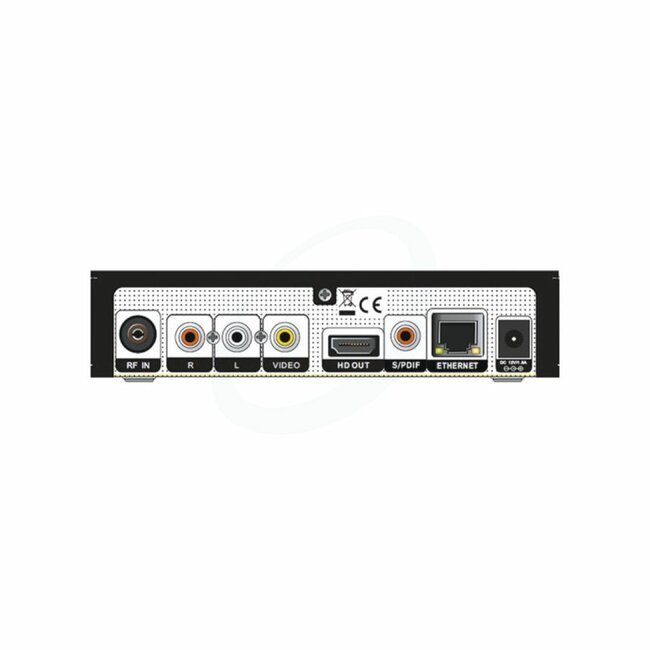

A/V & Data Input/Output:
- Ethernet: 10/100M RJ45
- USB: Two USB 2.0 slots compatible
- Digital Video Output
- S/PDIF: Coaxial digital audio or Dolby Digital Bit Stream output
- SCART: (1-CVBS, 1-L/R, SL, FB) or RCA output
- IR: Jack-type, external IR sensor connection
- RS232: Jack-type, transmission speed 115.2 Kbps, 9-pin D-sub type
Physical Specifications:
- Dimensions [W * H * D]: 146 mm * 110 mm * 35 mm
- Net Weight: 0.25 kg
- Operating Temperature: 0°C ~ +45°C
- Storage Temperature: -10°C ~ +70°C
- Storage Humidity: 5% ~ 95% RH (non-condensing)
